| RS-640 | RS-540 | ||
|---|---|---|---|
| Printing technology | Piezoelectric inkjet | ||
| Media | Width | 259 to 1,625 mm (10.2 to 64 in.) | 259 to 1,371 mm (10.2 to 54 in.) |
| Thickness | Maximum 1.0 mm (39 mil) with liner | ||
| Roll outer diameter | Maximum 210 mm (8.3 in.) | ||
| Roll weight | Maximum 40 kg (88 lb.) | Maximum 30 kg (66 lb.) | |
| Core diameter | 50.8 mm (2 in.) or 76.2 mm (3 in.) | ||
| Printing width *1 | Maximum 1,615 mm (63.6 in.) | Maximum 1,361 mm (53.6 in.) | |
| Ink cartridges | Types | Roland ECO-SOL MAX INK | |
| Capacity | 220 cc or 440 cc | ||
| Color | Four colors (cyan, magenta, yellow, and black) | ||
| Printing resolution (dots per inch) |
Maximum 1,440 dpi | ||
| Distance accuracy *2 *3 | Error of less than ±0.3% of distance traveled, or ±0.3 mm, whichever is greater | ||
| Media heating system *4 | Print heater, setting range for the preset temperature: 30 to 45°C (86 to 112°F) Dryer, setting range for the preset temperature: 30 to 50°C (86 to 122°F) |
||
| Connectivity | Ethernet (10BASE-T/100BASE-TX, automatic switching) | ||
| Power-saving function | Automatic sleep feature | ||
| Power requirements | AC 100 to 120 V ±10%, 7.8 A, 50/60 Hz or AC 220 to 240 V ±10%, 4.0 A, 50/60 Hz |
AC 100 to 120 V ±10%, 7.6 A, 50/60 Hz or AC 220 to 240 V ±10%, 3.9 A, 50/60 Hz |
|
| Power consumption | During operation | Approx. 1030 W | Approx. 980 W |
| Sleep mode | Approx. 16 W | Approx. 16 W | |
| Acoustic noise level | During operation | 63 dB or less (according to ISO 7779) | |
| During standby | 44 dB or less (according to ISO 7779) | ||
| Dimensions | With stand | 2,570 (W) x 740 (D) x 1,103 (H) mm (101.2 (W) x 29.1 (D) x 43.4 (H) in.) |
2,310 (W) x 740 (D) x 1,103 (H) mm (90.9 (W) x 29.1 (D) x 43.4 (H) in.) |
| With ink-cartridge tray and stand |
2,570 (W) x 1,000 (D) x 1,103 (H) mm (101.2 (W) x 39.4 (D) x 43.4 (H) in.) |
2,310 (W) x 1,000 (D) x 1,103 (H) mm (90.9 (W) x 39.4 (D) x 43.4 (H) in.) |
|
| Weight (with stand) | 133 kg (293 lb.) | 122 kg (269 lb.) | |
| Environmental | Power on | Temperature: 15 to 32°C (59 to 90°F) (20°C [68°F] or more recommended),humidity: 35 to 80%RH (non-condensing) | |
| Power off | Temperature: 5 to 40°C (41 to 104°F), humidity: 20 to 80%RH (non-condensing) |
||
| Accessories | Stand, power cord, media clamps, media flanges, replacement blade for separating knife, cleaning kit, software RIP, User's Manual, etc. | ||
*1 The length of printing is subject to the limitations of the program.
*2 Using Roland specified media, print travel of 1m, temperature: 25°C (77°F), humidity: 50%RH
*3 Not assured when the print heater or dryer is used.
*4 Warm-up is required after powerup. This may require 5 to 20 minutes, depending on the operating environment. The preset temperature may fail to be reached depending on the ambient temperature and media width.
| Operating system | Windows Vista® Ultimate Service Pack 1 or Business Service Pack 1 (32-bit edition), Windows Vista® Ultimate or Business (32-bit edition), or Windows® XP Professional Service Pack 2 or 3, or Windows® 2000 Service Pack 4 |
|---|---|
| CPU | Pentium 4, 2.0 GHz or faster recommended |
| RAM | 1 GB or more recommended (Windows Vista®: 2 GB or more recommended) |
| Video card and monitor |
A resolution of 1,280 x 1,024 or more recommended |
| Free hard-disk space | 40 GB or more recommended |
| Optical drive | DVD-ROM drive |
| Model | Description | |
|---|---|---|
| ECO-SOL MEDIA | SP-CL-1000T | Clear PET film, adhesive, 1,000 mm x 20 m (39.37" x 65.61') |
| SP-SG-1270G | PET semi gloss, gray adhesive, 1,270 mm x 30 m (50" x 98') | |
| SP-SG-1270TR | PET semi gloss, removable adhesive, 1,270 mm x 30 m (50" x 98') | |
| SPVCB-1270 | PVC banner, 1,270 mm x 20 m (50" x 65') | |
| SVB-B-1270 | PVC banner, blockout, 1,270 mm x 20 m (50" x 65') | |
| SP-M-1270 | Matte PET film, 1,270 mm x 30 m (50" x 98') | |
| SFPLF-1300 | Backlit film, 1,300 mm x 30 m (51-1/8" x 98') | |
| SCM-GBMW-50-1180 | Polyethylene banner, 1,180 mm x 50 m (46-7/16" x 164') | |
| SCM-GPPG-50-914 | White glossy photo paper, 914 mm x 50 m (36" x 164') | |
| SCM-GPPG-50-1270 | White glossy photo paper, 1,270 mm x 50 m (50" x 164') | |
| SCM-GVWG-40-1370 | Monomeric calendered self adhesive vinyl white glossy-permanent adhesive, 1,370 mm x 40 m (53-7/8" x 131') | |
| SCM-GVWG-40-1525 | Monomeric calendered self adhesive vinyl white glossy-permanent adhesive, 1,525 mm x 40 m (60" x 131') | |
| ECO-SOL MAX Ink | ESL3-4MG | Magenta, 440 cc |
| ESL3-4YE | Yellow, 440 cc | |
| ESL3-4CY | Cyan, 440 cc | |
| ESL3-4BK | Black, 440 cc | |
| ESL3-MG | Magenta, 220 cc | |
| ESL3-YE | Yellow, 220 cc | |
| ESL3-CY | Cyan, 220 cc | |
| ESL3-BK | Black, 220 cc | |
| Cleaning liquid | SL-CL | 1 pc. |

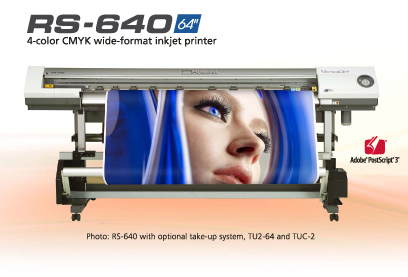

| Take-up System | TU2-64 | For RS-640, rolls up to 30kg (66lbs.) |

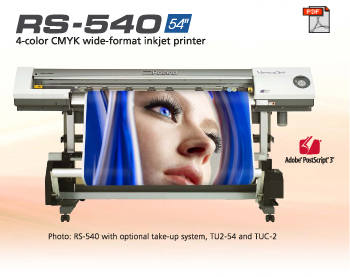

| TU2-54 | For RS-540 rolls up to 30kg (66lbs.) | |
| TUC-2 | Controller for TU2-64 and TU2-54 take-up systems | |
